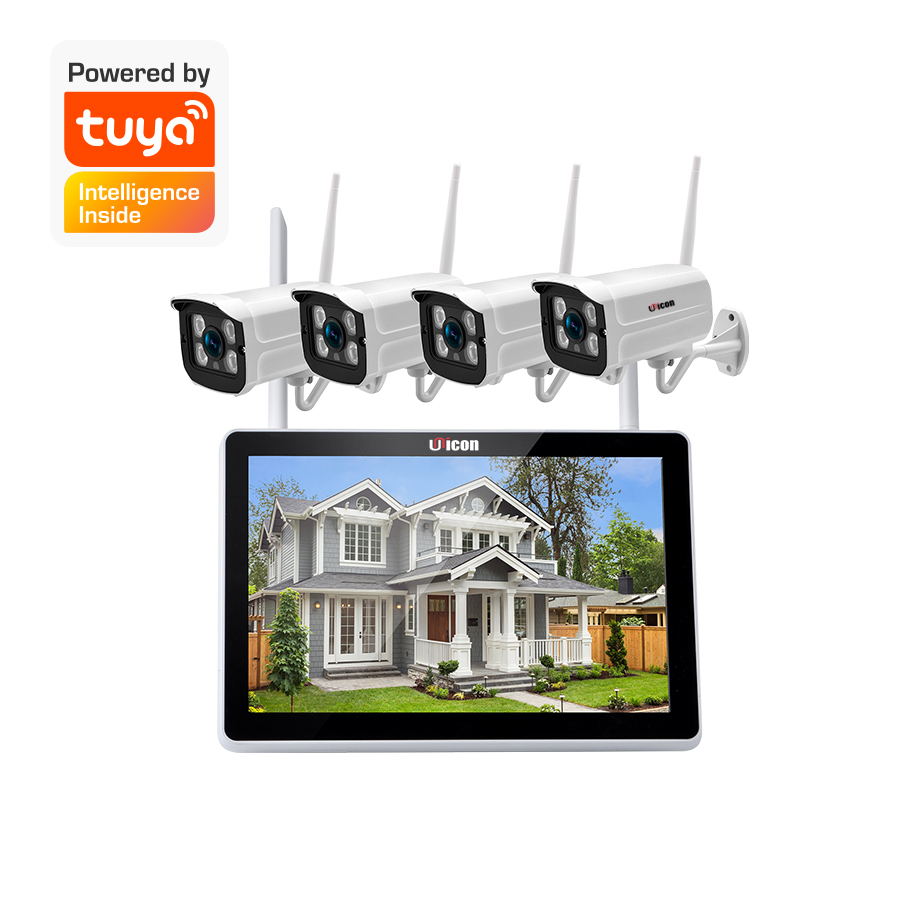

4CH H.265 Tuya App 2MP Audio Video Surveillance Wireless NVR Kit With Monitor Security Camera System
Specification :
| Model |
Wifi NVR |
| Operating System |
Embedded Linux OS |
| AV(video)input |
|
| Network Video |
4CH |
| Network video input broad bank |
10Mbps |
| AV (video) output |
|
| HDMI input |
1ch,resolution:1024x768,1366x768,1440x900,1920x1080p |
| VGA output |
1ch,resolution:1024x768,1366x768,1440x900,1920x1080p |
| AV CODEC Specification |
|
| Video Resolution |
1080P |
| synch-playback |
4CH |
| Video Control |
|
| Video/Capture mode |
Manual,Time,Motion,Alarm |
| Playback mode |
Real time,Routine,Event |
| Backup |
USB backup |
| Alarm |
|
| Alarm Input |
4ch (optional) |
| Alarm Output |
1ch (optional) |
| Hard Disk |
|
| Type |
1*SATA interface |
| Max Capacity |
4 TB at most for each |
| External Interface |
|
| Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface |
2 USB 2.0 |
| Network Control |
|
| Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
| Others |
|
| Power Supply |
DC12V3A |
| Power Consumption (W) |
≤5W(Without HDD) |
| Operate Temperature (°C) |
-10℃~+55℃ |
| Working Humidity (%) RH |
10%~90% |
| Size |
257mm(W)×210mm(V)×45mm(H) |
| Weight(excluding HDD) |
≤1Kg |
| Model |
Wifi Camera |
| Technical Parameters |
|
| Sensor |
1/4” Progressive Scan Sensor |
| Signal System |
PAL/NTSC |
| Resolution |
1080P; 1920 x 1080 16 : 9 High Defination |
| Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter |
1/25s to 1/25,000s |
| Lens |
3.6/4/6mm (optional) |
| OSD |
Date Time & Title |
| White Balance |
Auto |
| Day&Night |
Auto / Color / BW |
| 3D-DNR |
Auto |
| Mirror/Flip |
On / Off |
| Frame Specification |
Three Streaming at the Same Time: |
| S/N |
> 39.1 Db |
| Interface |
RJ45 / WIFI 802.11b/g/n |
| General Specification |
|
| Anti-thunder Level |
Standard IEC61000-4-5 |
| Ambient Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
