Night Vision Security Cameras

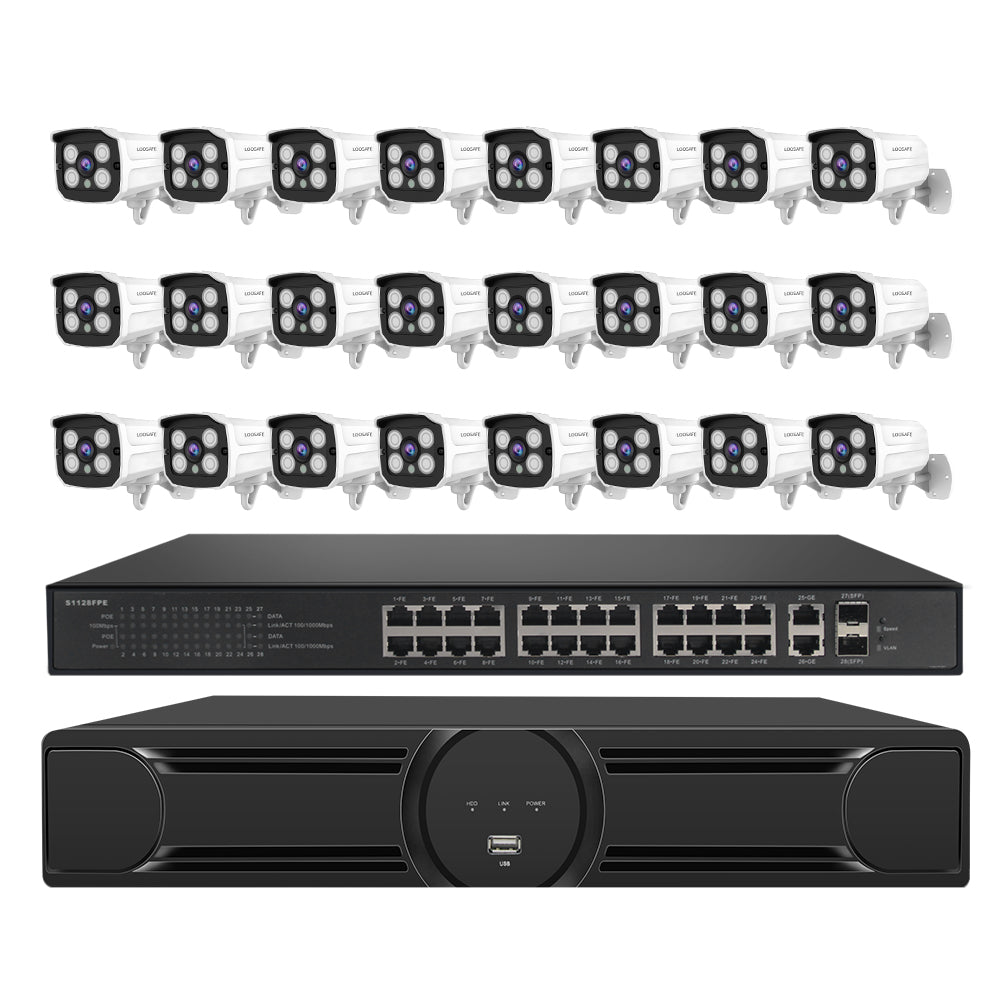

24CH H.265X Ip Camera System Night Vision Security Cameras CCTV System 5mp Outdoor POE Video Surveillance NVR Set
| Kits |
Model Type: |
POE Surveillance Kit |
| Model No. |
LS-DZ20 POE 24ch kit 3/5MP |
|
|
|
Lens |
3.6mm |
| Sensor |
1/3" CMOS |
|
| S/N Ration |
>47db |
|
| Image Pixel/Resolution |
3MP/5MP |
|
| Image Compression: |
H.265 |
|
| View Angle |
75.7° - 19.8° |
|
| Infrared Distance |
20m - 50m |
|
| Mini Illumination |
0 Lux (IR-Cut) |
|
| Day & Night |
Automatic IR-Cut |
|
| 3D-DNR |
Auto/BW/Color |
|
| OSD |
Date Time/Tilt |
|
| White Blance |
Auto |
|
| Stream |
Dual Stream: 3/5MP@25fps |
|
| Internet Interface |
1*RJ45 Ethernet Interface, 802.11b/g/n |
|
| Power |
12V DC/2A (Output), 100-240V AC (Input) , 50-60HZ |
|
| Materials |
Aluminum Alloy |
|
| Waterproof |
IP66 |
|
| Operation Temperature |
-25 ℃ - 45 ℃ |
|
| Size |
L95*W65*H65mm |
|
| NVR |
Model No |
2P323 |
| System |
Embedded Linux |
|
| Video Input |
MAX 5MP |
|
| Video Output |
1*VGA, |
|
| Video Compression: |
H.265 |
|
| Synch-playback |
5MP |
|
| Backups |
Manual |
|
| Storage |
1*Max 8TB HDD |
|
| Internet Interface |
5*RJ45 10M/100M, 4*RJ45 support POE IEEE802.3af/at |
|
| USB Interface |
2*USB2.0 |
|
| Protocal |
Yes |
|
| Internet Protocal |
UPnp, SMTP,PPPoE,DHCP |
|
| Power |
48V/2.5A |
|
| Power Consumption |
10W |
|
| Operation Temperature |
0℃ to 55 ℃ |
|
| Size |
L260*215*50mm |
