The Most Popular High-speed Industrial Router Supports a Variety of Encryption

$1,496.00

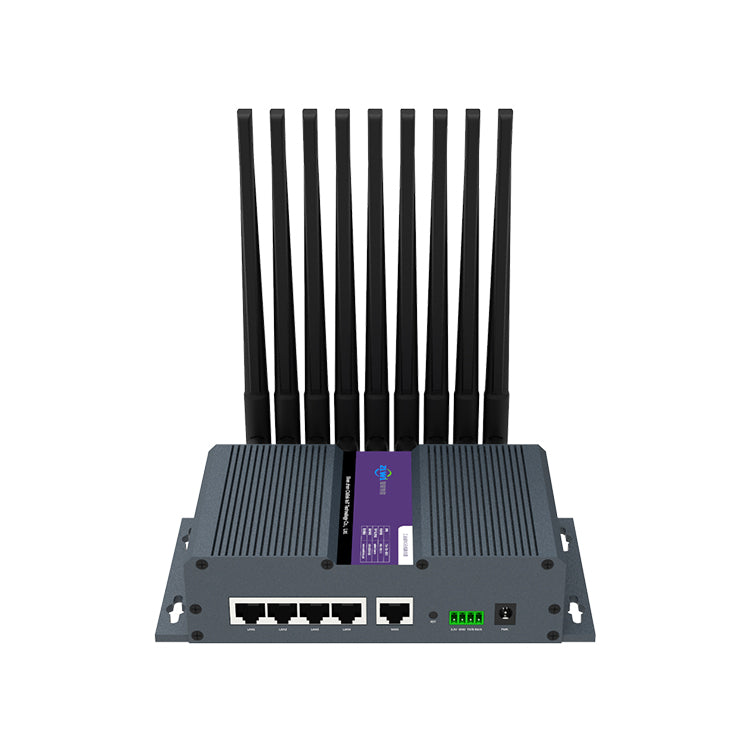

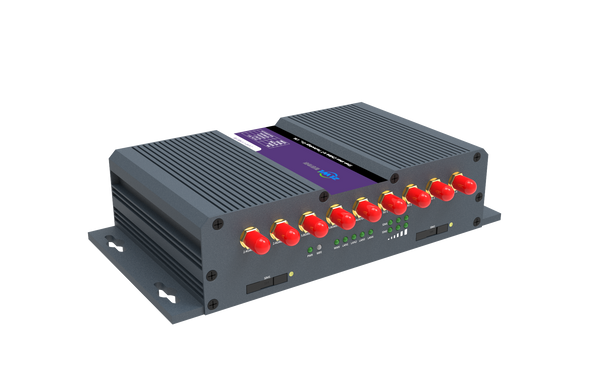

ZR9000 series industrial-grade 4G/5G wireless routers are a new generation of mobile routers independently developed by Shenzhen ChiLink IOT Technology Co., Ltd. It integrates 5G/4G/3G, and 2.4G and 5.8G WiFi, routing, switching, network management, VPN , Firewall, security and other technologies. It provides software features such as static routing/dynamic routing, 5G/4G/3G dial-up, QOS, and smart IoT. It is a cost-effective, full-featured edge network device newly created by ChiLinkIoT.

5G/4G Parameters	* Wireless Modules:	Industrial cellular module
	* Theoretical broadband:	5G NR:Max 4Gbps(DL)/300Mbps(UL) LTE Cat20:Max 2.4Gbps(DL)/150Mbps(UL) HSPA+:Max 42.2Mbps(DL)/5.76Mbps(UL)
	* Transmit power:	< 23dBm
	* Receiving sensitivity:	< -97dBm
WiFi Parameters	* Standard:	Support IEEE802.11b/g/n/ac standard
	* Theoretical broadband:	54Mbps(b/g);150Mbps(n);390Mbps(ac)
	* Security Encryption:	It supports a variety of encryption WEP, WPA, WPA2, etc.
	* Transmit power:	About 16dBm(11ac);20dBm(11n);21.5dBm(11g);26dBm(11b)
	* Receiving sensitivity:	<-72dBm@54Mpbs

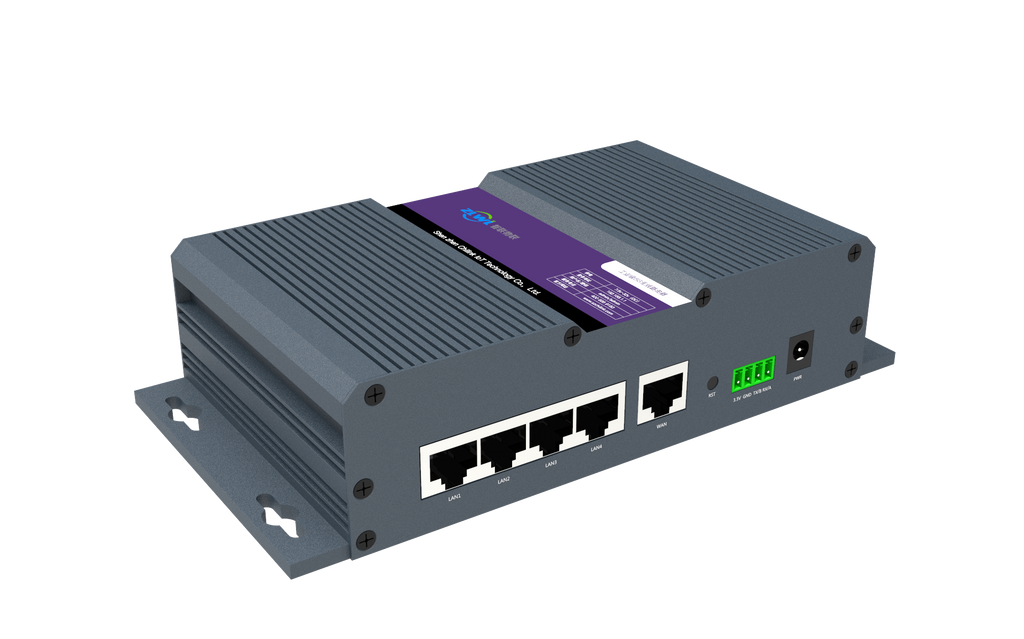

Interface Type	* WAN:	1 10/100/1000M Ethernet port (RJ45 socket), adaptive MDI/MDIX,can be switched to LAN
	* LAN:	1 10/100/1000M Ethernet port (RJ45 socket), adaptive MDI/MDIX
	* Serial:	1 RS232 or Rs485 port,baud rate 2400~115200 bps
	* Indicator Light:	With “PWR”, “WiFi”, “WAN”, 4 x “LAN”, “SIM” indicator lights

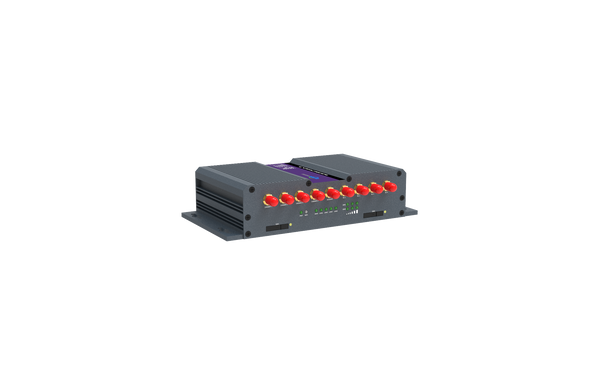

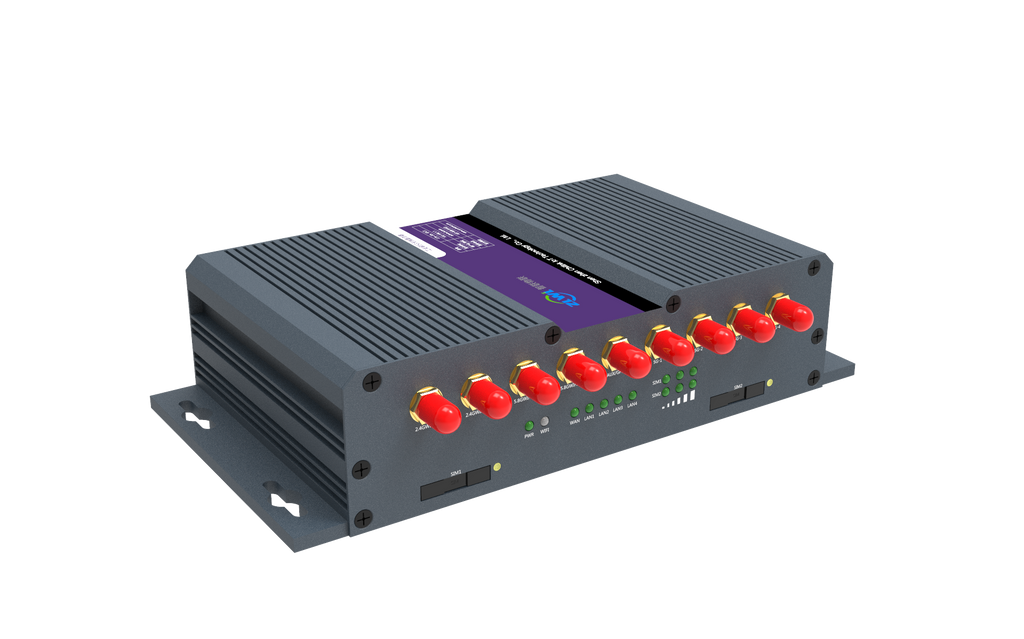

	* Antenna:	8 standard SMA female antenna interfaces, namely cellular and WiFi
	* SIM/USIM:	Standard 1.8V/3V card interface
	* Power:	Standard 3-PIN power jack,reverse-voltage and over-voltage protection
	* Reset:	Restore the router to its original factory default settings
Power	* Standard Power:	DC 12V/1A
	* Power Range:	DC 7.5~32V
	* Consumption:	About 11W@12V DC
Physical Dimension	* Shell:	Aluminum alloy housing
	* Size:	About 190 x 100 x 45 mm(Does not include accessories such as antennas)
	* Bare Machine Weight:	About 675g(Does not include accessories such as antennas)
Hardware	* CPU:	High-performance dual-core hardware platform,880MHz
Hardware	* FLASH/RAM:	16MB/256MB
Use Environment	* Operating Temperature:	-30~75℃
	* Storage Temperature:	-40~85℃
	* Relative Humidity:	<95% non-condensing

Industrial Design

High-performance dual-core hardware platform
Rugged and compact aluminum alloy housing
High and low temperature resistance(-30℃~75℃),durable
Wide voltage range (7.5V DC to 32V DC)
Strong electromagnetic interference Resistance,passed the EMC test required for CE certification
Support mounting ear for industrial

Stability

Built-in watch dog,Multi-link detection
Always online,automatically reconnect when disconnected to ensure continuous connection
LCP/ICMP/flow/heartbeat check,ensure network usability

Basic Features

Support APN and VPDN wireless private network access in
WAN port support PPPoE,static IP,DHCP client
Support dual-band WiFi (2.4G and 5.8G)
Web/Management platform support,easy configure
Local and remote management (configuration,status,firmware upgrade,etc.)
Support VPN:GRE,PPTP,L2TP,IPSec,EOIP,N2N VPN,OpenVPN
Support DMZ,Port forwarding,Static NAT
Support DHCP Server
Support Dynamic DNS (DDNS)
DTU serial communication function,1 x RS232 or RS485
Support QoS,NTP
Schedule reboot

Optional Features

Load balancing,used for failover or backup between two networks
GPS capability for fleet management or other tracking application
Support SNMP network management
